Build a Retail Category Price Catalog from a Public Sitemap

This guide walks you through a real e-commerce workflow with the Geonode Scraper API: as if we are building it together.

You want a competitive catalog snapshot: what a retailer sells in one category, at what price, on promo or not. You already know the website. You do not need Search to find it.

By the end, you will understand which API to reach for at each stage, why Map on a homepage is not the same as the XML sitemap you open in a browser, and why Extract does not paginate for you.

Companion example code lives in geonode-scraper-examples/bedbathandbeyond-catalog/.

Use case

Imagine you are on a category, marketplace, or pricing team. You need a spreadsheet-ready product list with:

• Product title, brand, SKU / item number
• Current price (USD) and sale flag
• Category breadcrumb
• Product URL and retailer product id

Starting point: a known retailer, not a search query. Example: Bed Bath & Beyond.

Sitemap and category used in this walkthrough:

https://www.bedbathandbeyond.com/sitemap.xml
https://www.bedbathandbeyond.com/sitemap/ctaxonomy/ctaxonomy.xml
https://www.bedbathandbeyond.com/c/towels/bath-towels?t=18652

The same pattern works on other public retailers that publish a sitemap index and /c/... category pages (product listing pages, or PLPs). Each SKU lives on a product detail page (PDP), often ending in /product.html.

What we are going to build

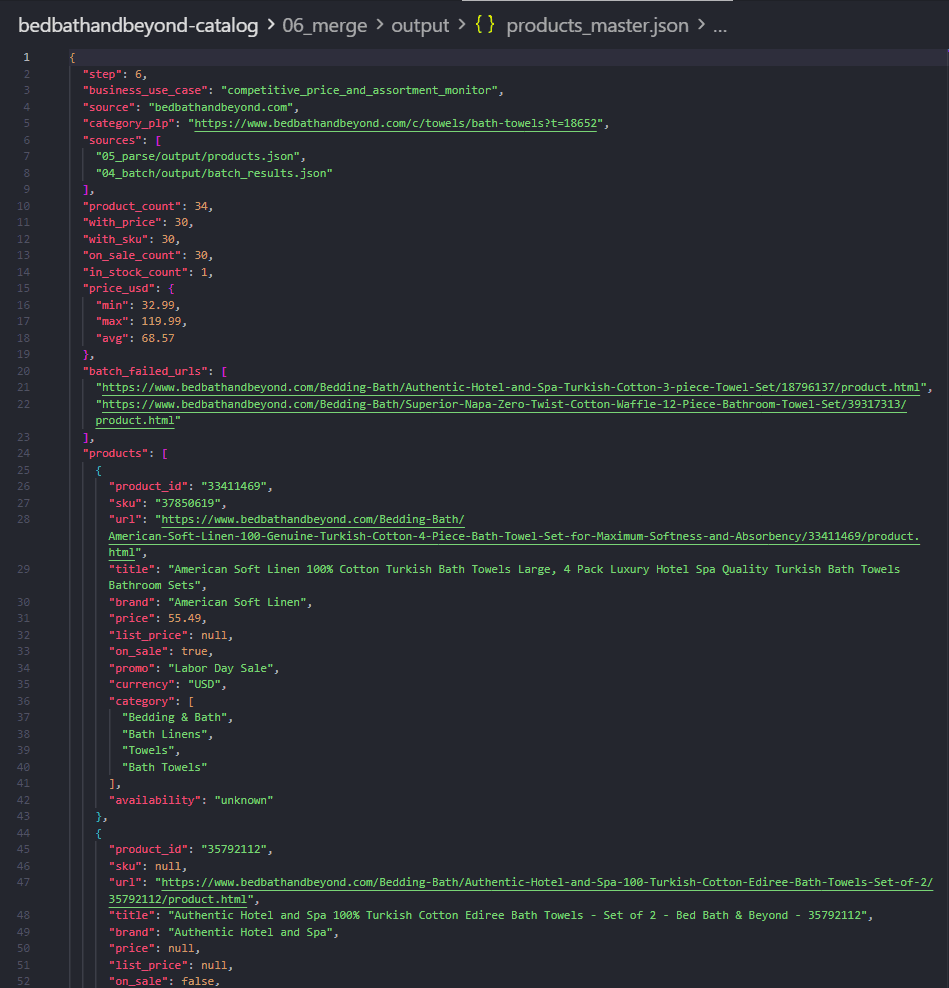

A master JSON catalog file. Each product looks roughly like this (shortened):

{
  "product_id": "33411469",
  "sku": "37850619",
  "url": "https://www.bedbathandbeyond.com/Bedding-Bath/.../33411469/product.html",
  "title": "American Soft Linen 100% Cotton Turkish Bath Towels...",
  "brand": "American Soft Linen",
  "price": 55.49,
  "list_price": null,
  "on_sale": true,
  "promo": "Labor Day Sale",
  "currency": "USD",
  "category": ["Bedding & Bath", "Bath Linens", "Towels", "Bath Towels"],
  "availability": "unknown"
}

In a demo run against two PLP pages of Bath Towels:

Exact counts depend on pagination depth, Batch failures, and site availability.

The plan (what you should expect)

We move through six stages. At each stage we pick one Geonode product on purpose:

1. Map      → sitemap.xml (index of sub-sitemaps)
2. Map      → ctaxonomy.xml (all category PLP URLs)
3. Extract  → one PLP + pagination → product URLs
4. Batch    → all PDPs → HTML
5. Parse    → title, price, SKU, sale (local)
6. Merge    → products_master.json

Search is not used. You already know the retailer.

Crawl is not required for this demo. After Extract you already have product URLs. Crawl is the right tool later if you want a BFS walk of one category with a page limit instead of looping ?page=.

Before you start

You need:

• A Geonode API key
• Python 3.9 or later
• The requests package

export GEONODE_SCRAPER_API_KEY="YOUR_API_KEY"
pip install requests

On Windows PowerShell:

$env:GEONODE_SCRAPER_API_KEY="YOUR_API_KEY"
pip install requests

Step 1: Map the sitemap index (not the homepage)

What we need

The retailer’s sitemap index: a list of sub-sitemap XML files (taxonomy, refinements, keyword pages, and so on).

What we will do

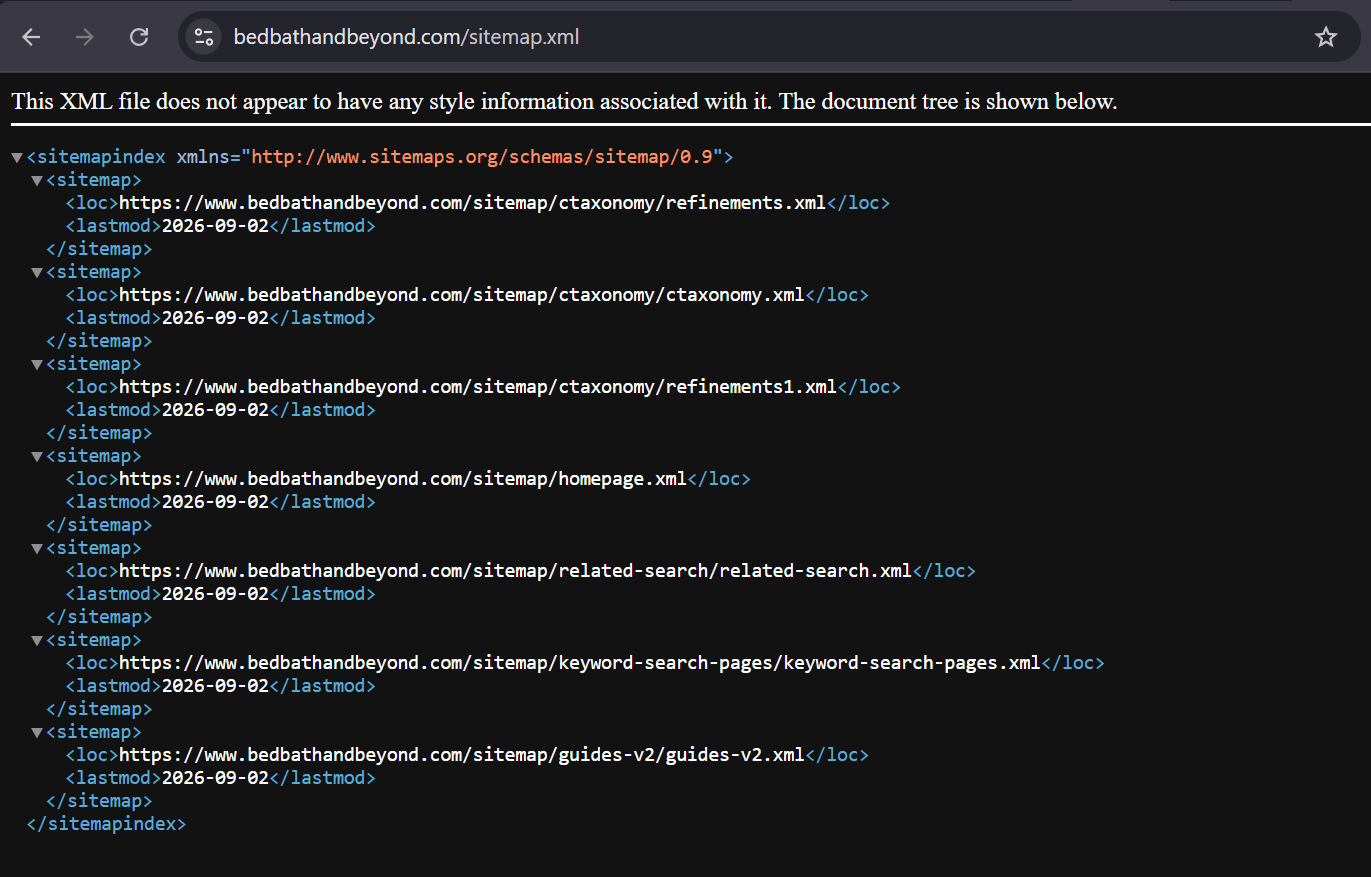

Open the sitemap in a browser so you know what “success” looks like:

https://www.bedbathandbeyond.com/sitemap.xml

You should see a <sitemapindex> with <loc> entries such as:

https://www.bedbathandbeyond.com/sitemap/ctaxonomy/ctaxonomy.xml
https://www.bedbathandbeyond.com/sitemap/ctaxonomy/refinements.xml
https://www.bedbathandbeyond.com/sitemap/keyword-search-pages/keyword-search-pages.xml

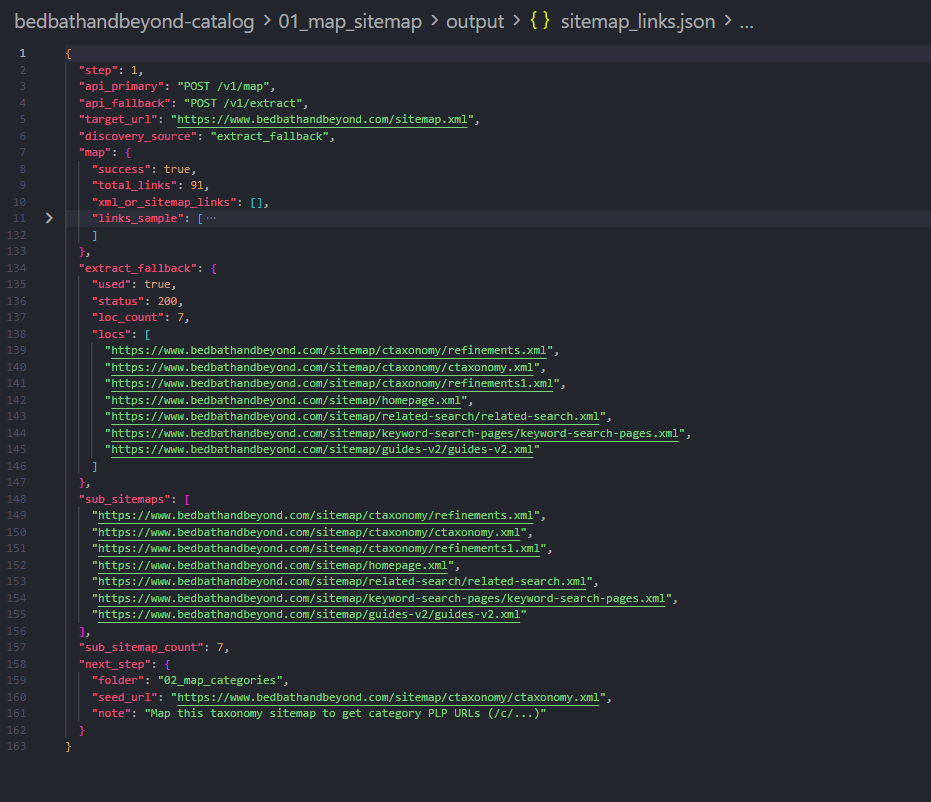

Then call Map on that same URL (sitemap.xml), not on https://www.bedbathandbeyond.com.

Why homepage Map looks different

Map means: discover links from this seed. It is not “pretty-print the XML file Chrome showed you.”

If Map on sitemap.xml does not return the .xml children you see in the browser, Extract the sitemap with render_js: false and parse <loc> tags locally. That is the same lesson as JS directories: Map first, Extract when the document content is what you need.

import os
import requests

api_key = os.environ["GEONODE_SCRAPER_API_KEY"]

response = requests.post(
    "https://scraper.geonode.io/v1/map",
    headers={
        "X-Api-Key": api_key,
        "Content-Type": "application/json",
    },
    json={
        "url": "https://www.bedbathandbeyond.com/sitemap.xml",
        "include_subdomains": True,
    },
)

response.raise_for_status()
print(response.json())

Takeaway

Map answers “what URLs can we inventory from this seed?” For a sitemap index, seed sitemap.xml. Save ctaxonomy.xml as the next seed.

Step 2: Map the category taxonomy (all PLPs)

What we need

Every category listing URL (/c/...) so you can pick one demo category (Bath Towels).

What we will do

Map (or Extract-parse <loc> if Map times out) on:

https://www.bedbathandbeyond.com/sitemap/ctaxonomy/ctaxonomy.xml

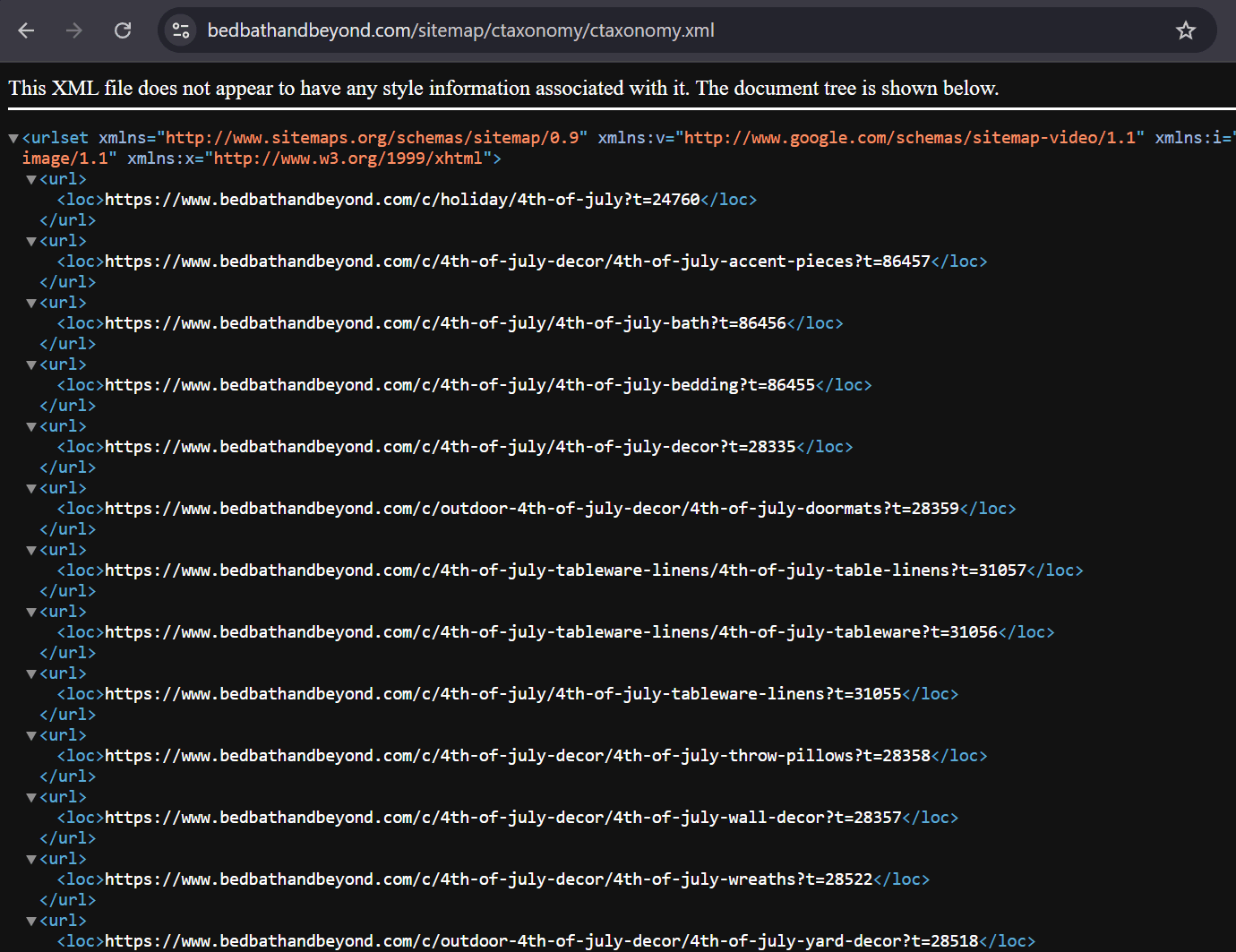

In the browser this file is a <urlset> of category pages, for example:

https://www.bedbathandbeyond.com/c/towels/bath-towels?t=18652

response = requests.post(
    "https://scraper.geonode.io/v1/map",
    headers={
        "X-Api-Key": api_key,
        "Content-Type": "application/json",
    },
    json={
        "url": "https://www.bedbathandbeyond.com/sitemap/ctaxonomy/ctaxonomy.xml",
        "include_subdomains": True,
        "ignore_query_parameters": False,
    },
)

response.raise_for_status()
links = response.json().get("links") or []
# Keep URLs whose path contains /c/

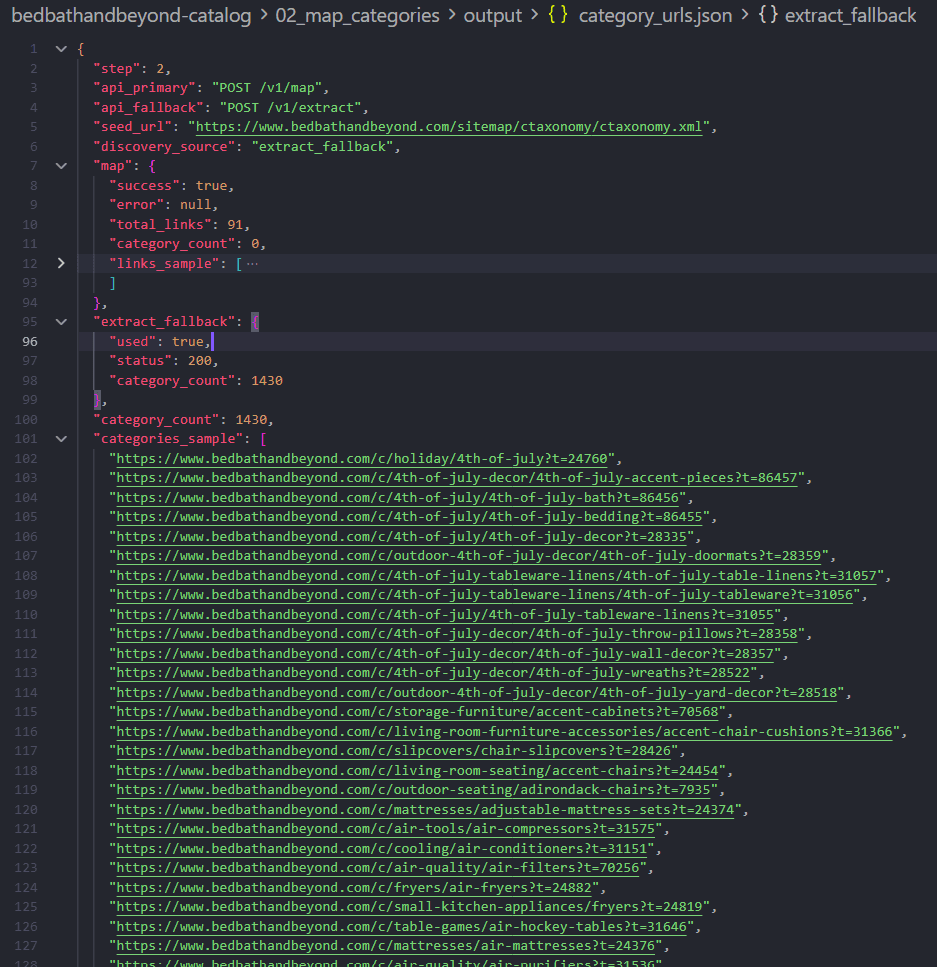

In this example run, taxonomy discovery produced about 1430 category PLPs. We pick one:

https://www.bedbathandbeyond.com/c/towels/bath-towels?t=18652

Takeaway

Second Map is the category tree, not product SKUs. PDPs usually live on listing pages, not in this taxonomy file.

Step 3: Extract the category PLP (pagination is your loop)

What we need

Product URLs (.../product.html) from the Bath Towels grid.

What we will do

1. Extract page 1 with JavaScript rendering and wait_config.
2. Parse the highest page= in the Markdown (the UI can show the last page on page 1).
3. Call Extract again for ?page=2, ?page=3, … yourself.

Extract does not auto-paginate

One Extract request = one URL. There is no “follow all pages” flag. That is the same pattern as directory listings in the B2B lead list guide.

Bed Bath & Beyond uses a query parameter:

https://www.bedbathandbeyond.com/c/towels/bath-towels?t=18652&page=33

wait_config (when the grid is JS)

From Waiting for Dynamic Content, wait order is:

wait_until → wait_for → wait_timeout → extract

For a product grid:

response = requests.post(
    "https://scraper.geonode.io/v1/extract",
    headers={
        "X-Api-Key": api_key,
        "Content-Type": "application/json",
    },
    json={
        "url": "https://www.bedbathandbeyond.com/c/towels/bath-towels?t=18652",
        "formats": ["markdown"],
        "render_js": True,
        "processing_mode": "sync",
        "proxy": {"country": "US", "type": "residential"},
        "wait_config": {
            "wait_until": "networkidle",
            "wait_for": 'a[href*="product.html"]',
            "wait_timeout": 5000,
        },
    },
)

response.raise_for_status()
markdown = response.json()["data"]["markdown"]
# Parse product.html links; parse max page=N; repeat Extract for page=2...

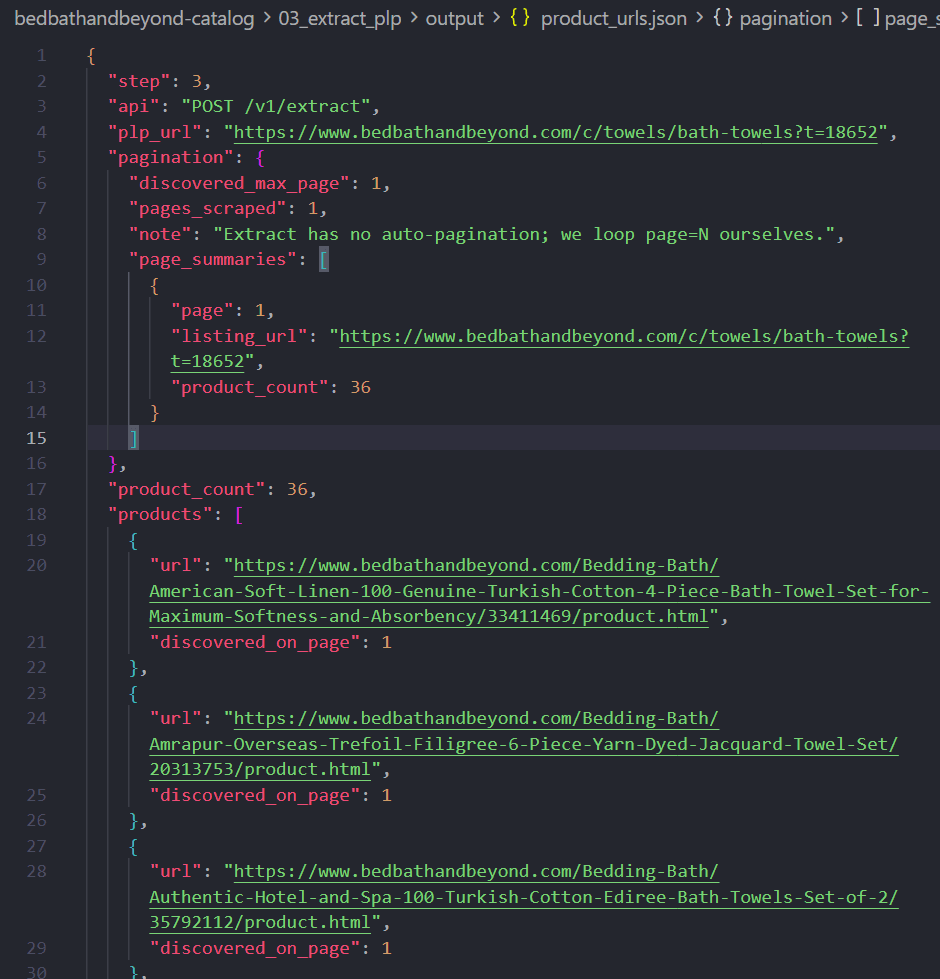

This demo extracted 2 PLP pages and collected ~36 product URLs.

Takeaway

Extract discovers PDPs on JS category pages. You implement pagination. Crawl is optional if you prefer one async job with a limit instead of a page loop.

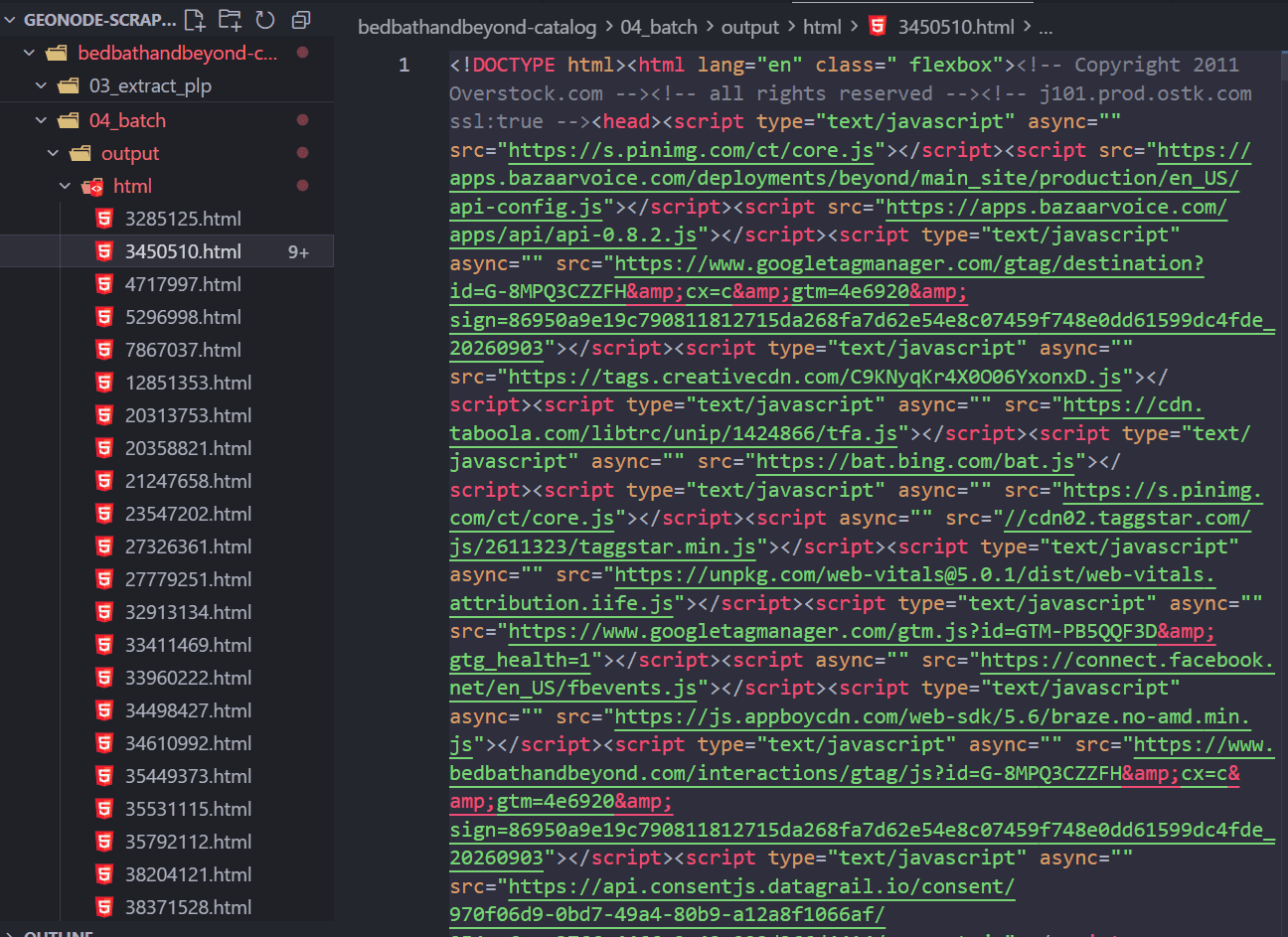

Step 4: Batch extract all product pages

What we need

HTML for every PDP so we can read price, SKU, and title.

What we will do

Submit one Batch job with all known product URLs instead of calling Extract in a loop.

What you should expect

You get a job_id. Poll GET /v1/batch/{job_id} until the job completes. Save each result’s HTML (use the numeric product id in the filename so files are not all named product.html).

Some URLs may fail; keep going. In this run: 36 submitted, 34 HTML files, 2 failed.

product_urls = [
    "https://www.bedbathandbeyond.com/Bedding-Bath/.../33411469/product.html",
    # ... URLs from step 3
]

response = requests.post(
    "https://scraper.geonode.io/v1/batch",
    headers={
        "X-Api-Key": api_key,
        "Content-Type": "application/json",
    },
    json={
        "urls": product_urls,
        "ignore_invalid_urls": True,
        "formats": ["html"],
        "render_js": True,
        "proxy": {"country": "US", "type": "residential"},
        "wait_config": {
            "wait_until": "networkidle",
            "wait_timeout": 3000,
        },
    },
)

response.raise_for_status()
job_id = response.json()["job_id"]
# Poll GET /v1/batch/{job_id} until completed, then save each result HTML

Takeaway

Many known URLs → Batch. Extract was for PLP discovery. Batch is for volume on PDPs you already have.

Step 5: Parse product HTML locally

What we need

Structured product rows: title, price, SKU, sale flag, category.

What we will do

Parse saved HTML locally (no Geonode call). Retailer PDPs often embed a compact analytics object (in this example, ensighten.items with price, sku, productId, productName) plus breadcrumbs.

What you should expect

JSON objects with fields such as:

• product_id, sku, url, title, brand
• price, list_price, on_sale, currency
• category (breadcrumb)

You may not get a reliable in-stock flag from HTML alone (add-to-cart vs “out of stock” copy is noisy). Treat availability as best-effort.

Takeaway

Scraper API gets you the pages. Local parse makes the pricing spreadsheet. Prefer structured blobs in the HTML over scraping the entire 3000-line document.

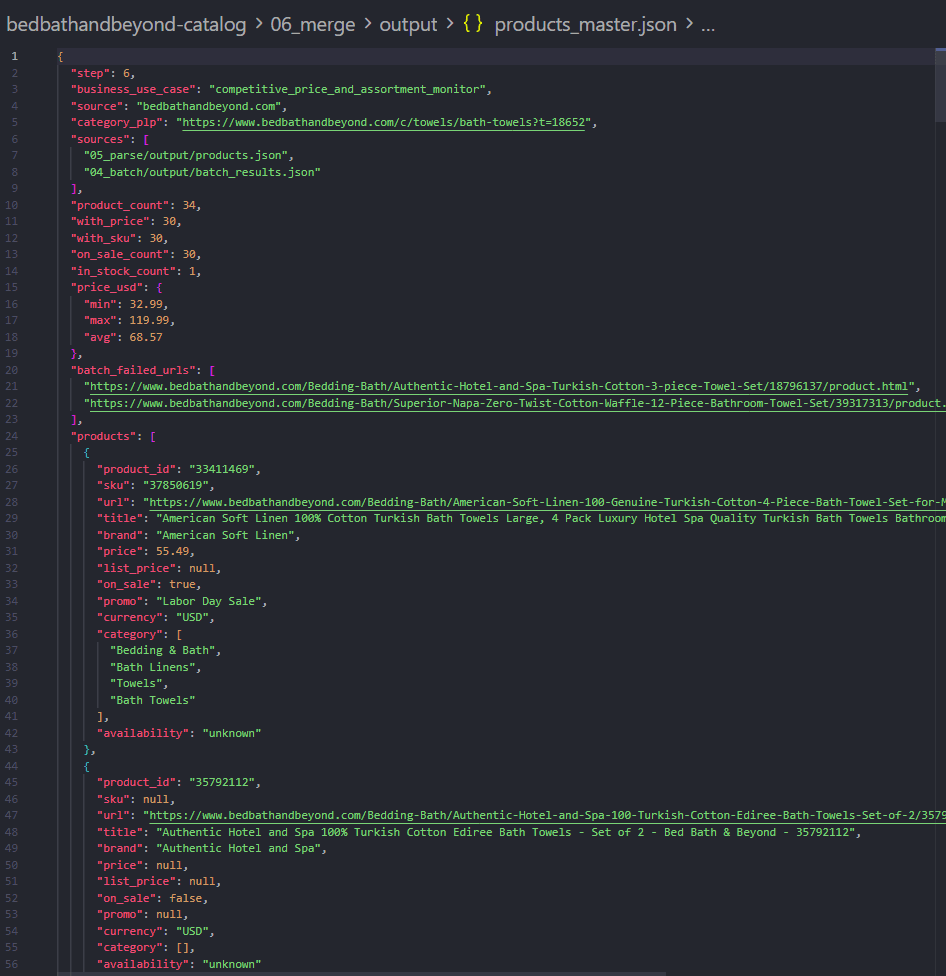

Step 6: Merge the master catalog

What we need

The final deliverable: one slim file a category or pricing person can use.

What we will do

Drop parse internals (source_file). Keep business fields. Add stats (with_price, on_sale_count, min/max/avg USD). Optionally list Batch-failed URLs so you can retry later.

What you should expect

products_master.json with a products array and summary metrics.

Takeaway

Same idea as a B2B master lead file: Geonode fetches pages; your merge step is the business artifact.

Why this API mix worked

You already knew the site (no Search)

Search is for market intent (“Berlin agencies”). Here the seed is a known domain + public sitemap.

Map was the right first tool (unlike the JS directory)

Extract + Batch covered listing → SKUs → HTML

1. Map builds the category list from taxonomy.
2. Extract discovers product URLs from rendered PLPs (+ your page loop).
3. Batch pulls all PDP HTML.
4. Local code turns HTML into a catalog JSON.

That is usually enough for sitemap → category → products → prices.

When to add Crawl later

Use Crawl from one PLP if you want async BFS with depth and limit instead of writing a ?page= loop. Keep limit small for demos.

Do not Crawl the entire retailer from the homepage for this use case.

Cost and request usage

On request-based pricing, successful page extractions consume requests. Map and job-status polling do not count as page extractions the same way content extraction does.

Approximate request shape for a run like this example (2 PLP pages):

If you Extract all Bath Towels pages (for example 30+), listing Extract grows linearly. Batch then grows with unique PDPs.

Cost contrast: Crawl the whole site

A homepage Crawl with a high limit can fetch hundreds of mixed URLs (guides, search pages, PDPs). For one category, Extract that PLP + Batch those PDPs stays bounded.

Pricing and plan details can change: check:

• Request-Based Pricing
• Unlimited Scraper API Pricing
• Choosing a Scraper API Plan

Unlimited plans bill by concurrency (threads), not a monthly request balance: useful when you run large Batches often.

Limitations and good practice

• Use publicly available pages and respect site terms / robots rules for your jurisdiction and use case.
• Prices and promo flags change; this is a point-in-time snapshot, not a live feed unless you re-run Batch.
• availability parsed from HTML can be wrong; confirm in the UI if stock is a business-critical field.
• Pagination windows in the UI may not show the true last page on page 1; still parse page= links and cap --max-pages for demos.
• This guide produces a catalog file, not a commercial scraping product. Apply your own policies.

Recap

1. Map sitemap.xml to find sub-sitemaps (Extract XML if Map misses <loc>).
2. Map ctaxonomy.xml to list category PLPs (handle Map 408 on huge files).
3. Extract one PLP with JS + wait_config; loop ?page= yourself.
4. Batch all PDPs to HTML.
5. Local parse + merge produces the master price catalog.

Companion: B2B directories use Search → Map-often-fails → Extract listings. Retailers with a sitemap use Map twice → Extract PLP → Batch PDPs.
