Proxy Endpoint Formats

This guide explains what proxy endpoints are, the types available in Geonode, and how to choose the most suitable format for your specific use case.

What Is a Proxy Endpoint?

A proxy endpoint is the address used to connect to a proxy server.
It defines how your requests are routed through Geonode’s network, ensuring secure, reliable, and efficient data transmission.

DNS vs. IP-Based Endpoints

Geonode allows users to connect either via a DNS-based hostname or a direct IP address.

1. DNS-Based Endpoints (Recommended)

• Use a domain name such as proxy.geonode.io.
• Easier to maintain — DNS automatically updates IPs when servers change.
• Reduces connection issues caused by IP rotation.

2. IP-Based Endpoints

• Use a direct IP address, e.g. 123.45.67.89:9000.
• Skips DNS resolution, which can be slightly faster in some setups.
• Ideal for apps or devices that don’t support DNS hostnames.

Available Endpoint Formats

Geonode supports multiple endpoint formats to ensure compatibility with different systems and authentication methods.

1. hostname:port

• Example: proxy.geonode.io:9000
• Best for: Simple connections without authentication.

2. hostname:port:username:password

• Example: proxy.geonode.io:9000:user:pass
• Includes authentication credentials for secure access.
• Best for: APIs and applications requiring basic authentication.

3. hostname:port@username:password

• Example: proxy.geonode.io:9000@user:pass
• Alternative authentication format.
• Best for: Legacy or custom proxy clients.

4. username:password@hostname:port

• Example: user:pass@proxy.geonode.io:9000
• Credentials placed before the host for compatibility.
• Best for: Apps that authenticate before establishing a connection.

5. http://username:password@server:port

• Example: http://user:pass@proxy.geonode.io:9000
• Explicit HTTP/HTTPS proxy format.
• Best for: Secure browsing and authenticated API requests.

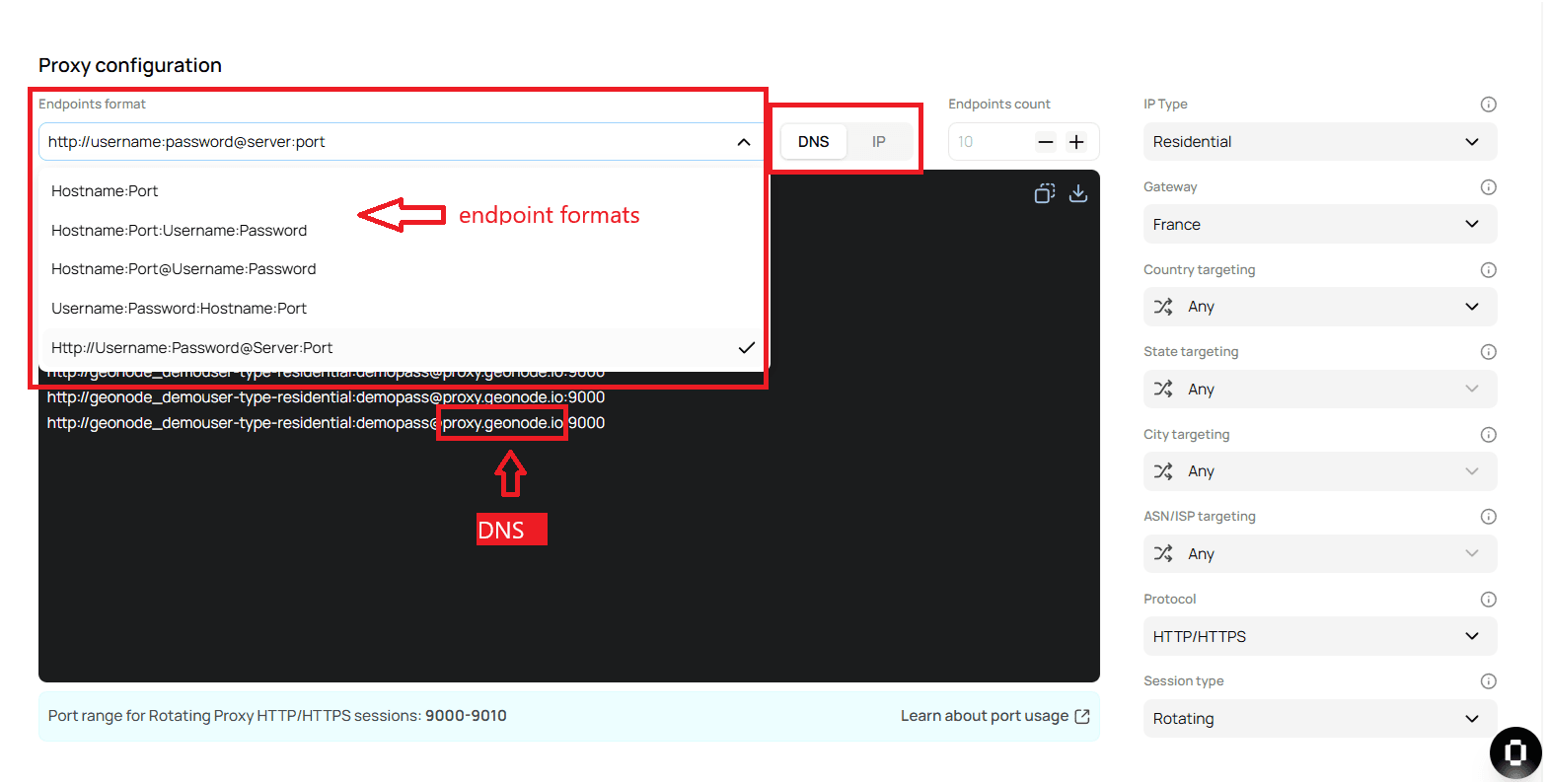

Choosing the Right Proxy Endpoint Format

Tips and Best Practices

• Start simple: Use hostname:port if no authentication is required.
• Prefer DNS: It’s more reliable and updates automatically.
• Use IP endpoints only for tools that can’t resolve hostnames.
• Always use HTTPS or encrypted channels when handling sensitive credentials.
• Test different formats — some apps accept only specific syntaxes.

Summary

Proxy endpoints define how your connection routes through Geonode’s network.
Choosing the correct format ensures:

• Smooth compatibility with your app or client,
• Secure authentication where required,
• Stable performance with minimal downtime.
